This metal  access control is specially designed for controlling the entrance of office,building,redidential area,facttory.Compared to other same products this one has the following advantages:

•  Metal structure,safety and durable
•  Touch keypads with backlight, easy to operate even in dark
•  Support EMID card(125KHz)and MIFARE card(13.56MHz)
•  Standard user capacity 3000users,max to 50000users
•  Lower power consumption stable and useful life
•  With external reader for two doors
•  Supprt independent password to open door
•  Support Master card to add or delete user cards

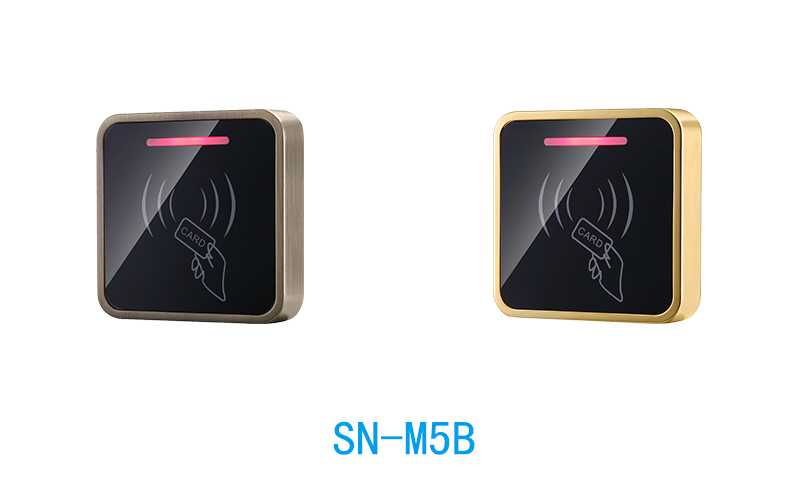

Product photos:

Specs Parameter:

•  Voltage:                                               DC12 ±10%
•  Static Current:                                     ≤60mA
•  Opening Current                                   ≤1.5A
•  Operation Humidity:                          10%~80%
•  RF Card type:                                      EMID/125KHz , IC13.56MHz
•  Card Read distance:                           5-7cm
•  User capacity:                                     3000-50000
•  Door opening time:                           3S(1-98s adjustable)
•  Ambient temperature:                       -45℃~60℃

•  Case meterial:                                       Zn Alloy
•  Touch screen meterial:                         Acrylic
•  Dimension:                                           78.7mm*78.7mm*18.6mm
•  Weight:                                                 350g


•  Support WIEGAND 26/34  input/output
•  Support MASTER CARD
•  Standalone

Special power supply diagram:
